How to Install a Backup Camera

Here's an article on how to install a backup camera:

How to Install a Backup Camera: A Step-by-Step Guide
Backup cameras have become increasingly popular in recent years, and for good reason. They can help prevent accidents and make reversing easier and safer. If you're interested in installing a backup camera in your vehicle, here's a step-by-step guide to help you get started.
  • Step 1: Selecting the Right Camera for Your Car
The first step in installing a backup camera is choosing the right camera for your vehicle. There are many different types of backup cameras available, from wireless to wired, and with different mounting options. Make sure to choose a camera that's compatible with your vehicle and meets your needs.
  • Step 2: Gather the Necessary Tools and Equipment
To install a backup camera, you'll need a few tools and equipment, including a drill, screwdriver, wire stripper, soldering iron, and electrical tape. Make sure to have everything you need before you start the installation process.
  • Step 3: Install the Camera
The next step is to install the camera itself. This will involve drilling a hole in your vehicle's rear bumper or license plate frame to mount the camera.

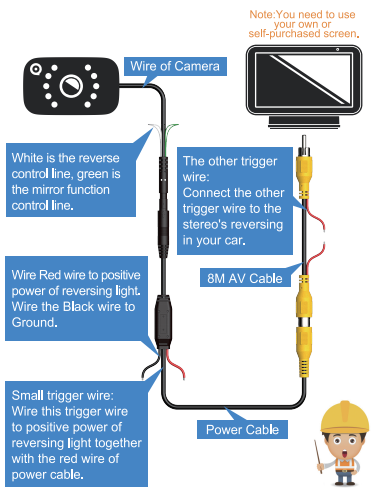

  • Step 4: Connect the Wires

(1).Connect the 4pin connector of the camera to the black port of the power cable.
(2).Connect the red and black wires of the power cable to the positive and negative terminals of the reversing light.
(3).Connect the yellow port of the power cable to one end of the RCA extension cable.
(4).Connect the other end of the RCA extension cable to the screen signal port.

  • Step 5: Test the Camera
Once the camera and monitor are connected, it's time to test the system to make sure everything is working properly. Start your vehicle and engage the reverse gear to activate the camera. Make sure the image is clear and that the camera is providing a wide-angle view of the area behind your vehicle.
Installing a backup camera in your vehicle can be a worthwhile investment in terms of safety and convenience. With the right tools and equipment, and by following the steps outlined in this guide, you should be able to install a backup camera in your vehicle with relative ease. However, if you're not comfortable with the installation process, it's always best to consult a professional to ensure that the camera is installed properly and safely.
